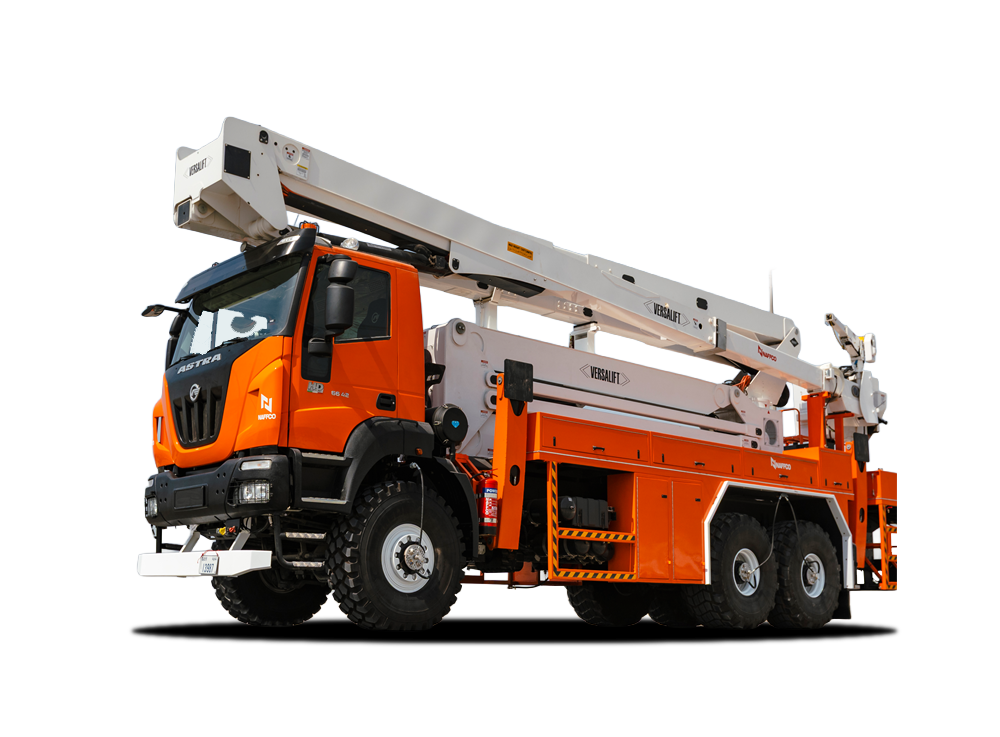

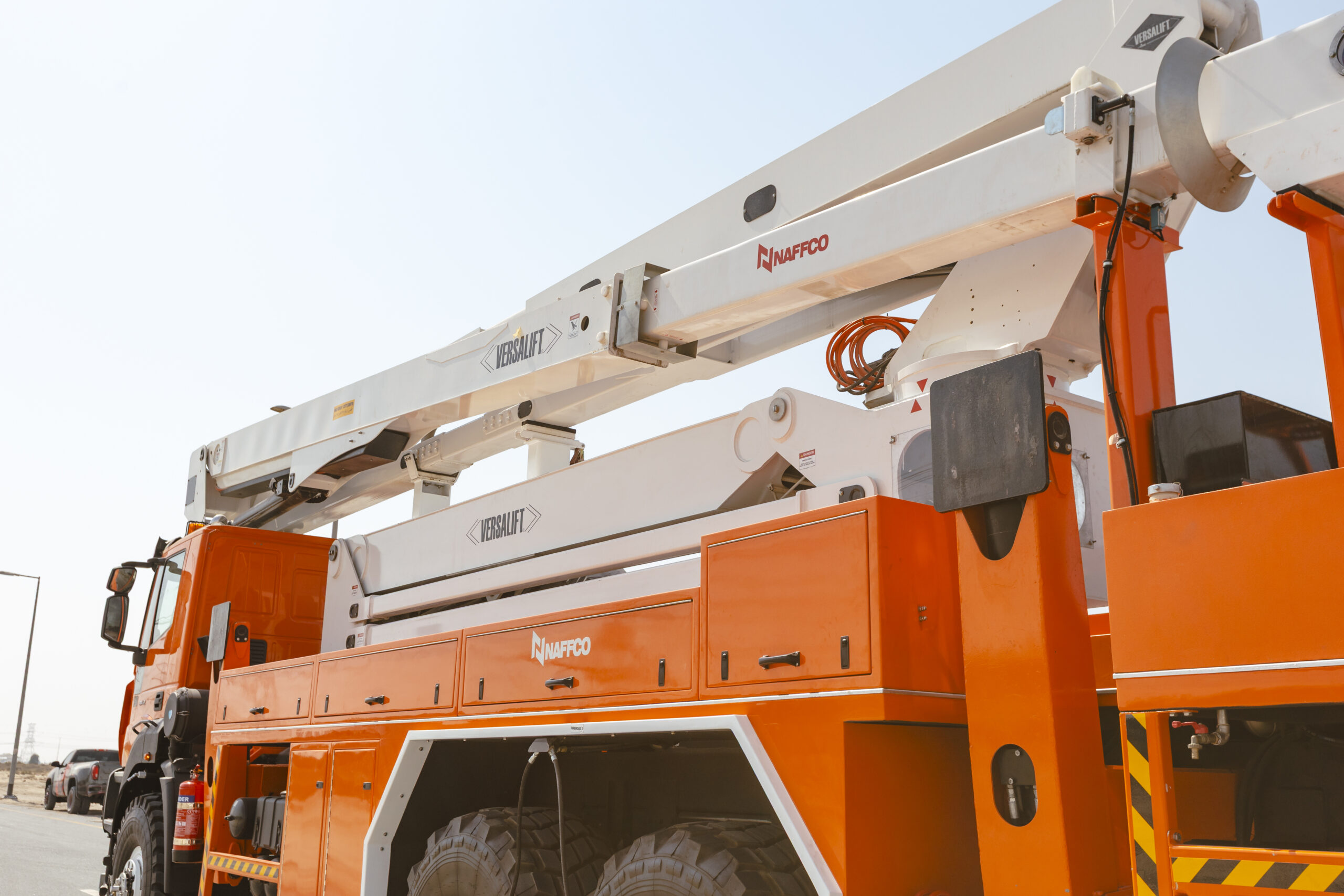

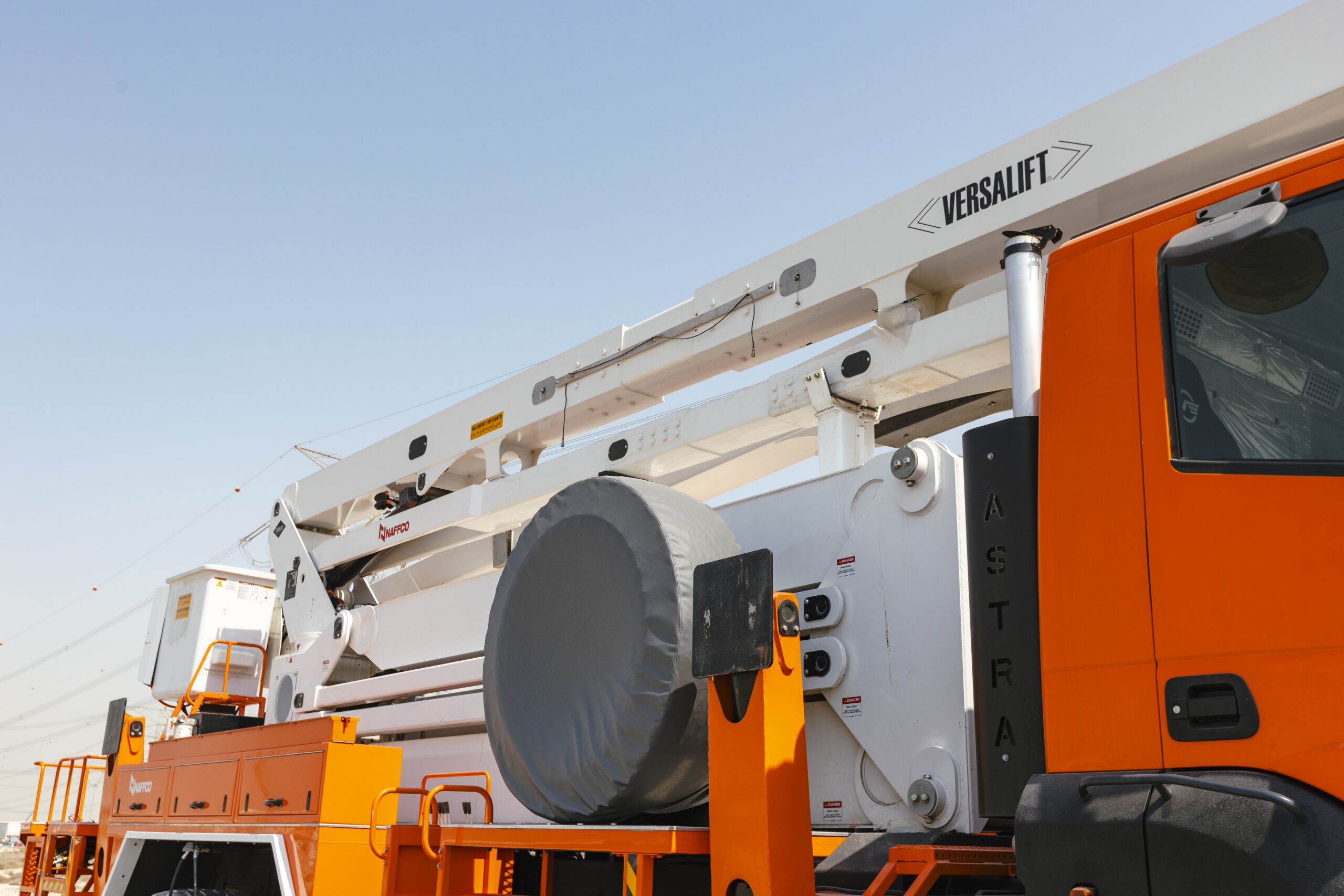

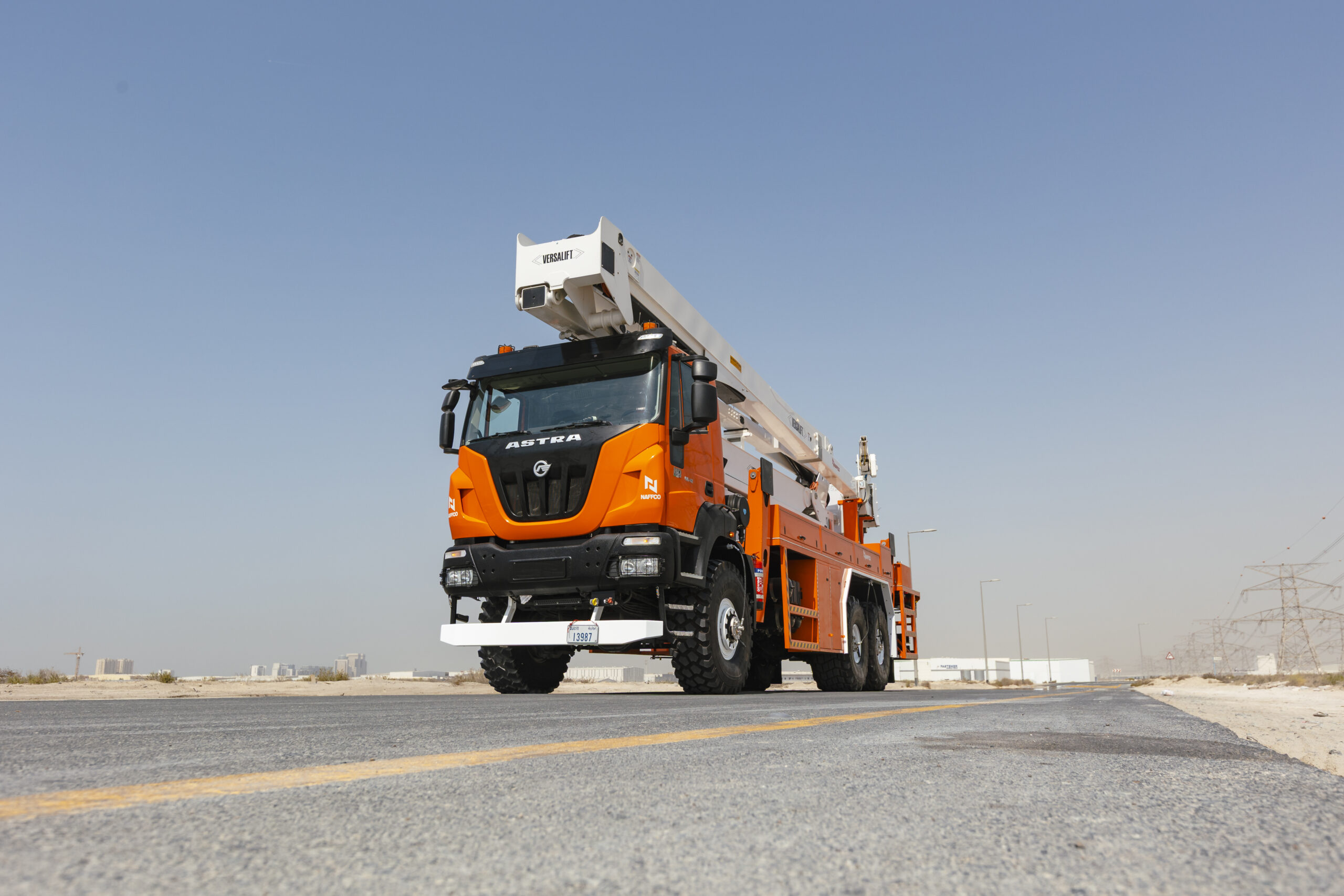

Insulated Aerial Platform – 125 Ft
HigHlights
WE BUILT FOR EASY MAINTENANCE
- Getting the300 kV transformer to the testing area.
- Fixing barriers to isolate area for safety
- Making the necessary electrical connections between the aerial basket, transformer and control panel.
- Connecting the transformer to the electrical mains.
- Applying the load gradually from zero volt to 300 kV.
- Hold on the load for one minute and reading the leakage current.
- Leakage current was in the acceptable range.
- Testing apparatus was shut off.
- Equipment is then certified to work on 69 KV overhead electrical lines.
“NAFFCO has been manufacturing hydraulic insulated aerial platforms for many years for lower heights. Now developed higher range with foam filled boom as per ANSI & IEC standards”
CONCEPT

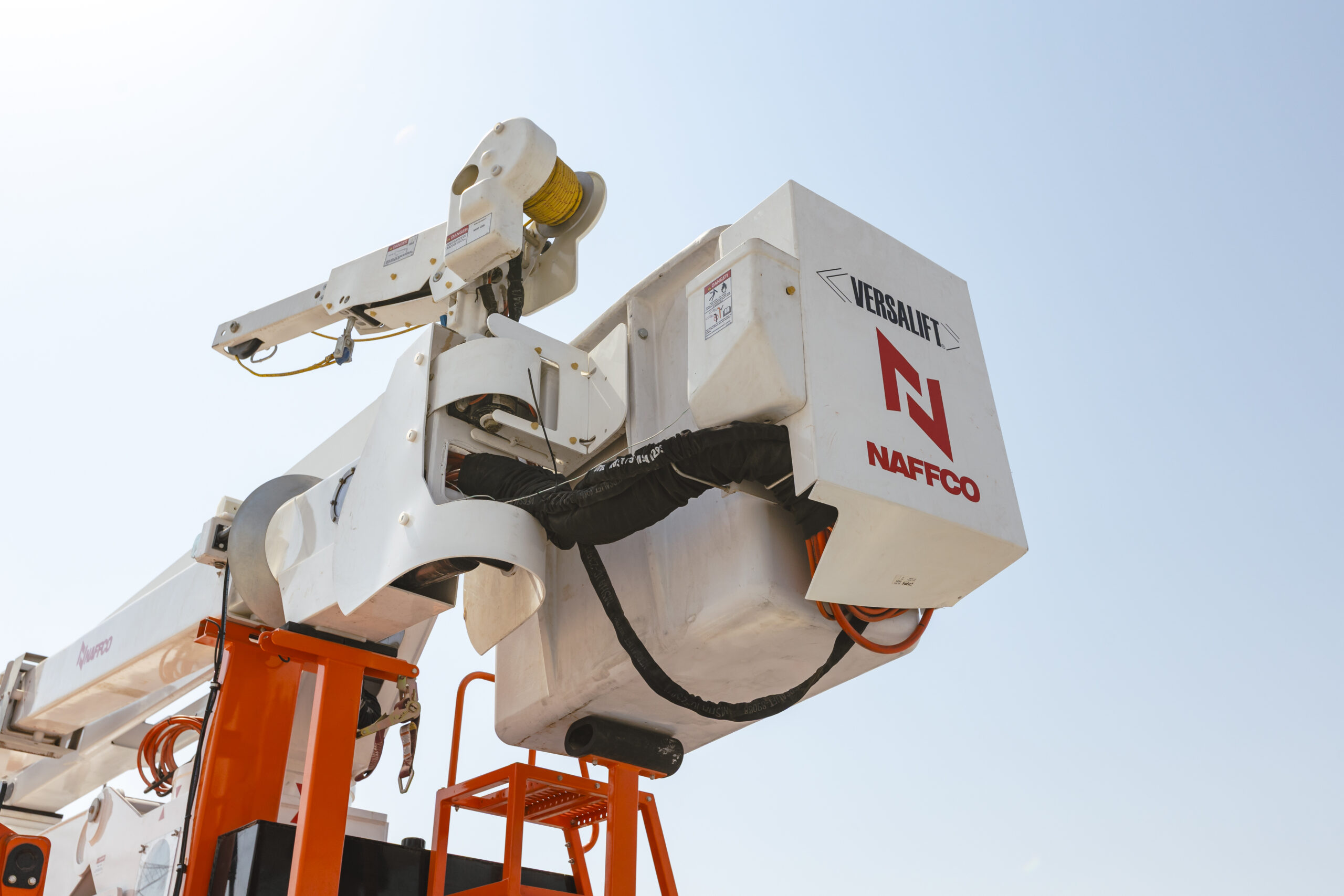

- Bare hands or potential working involves placing the technician in direct electrical contact with an energized overhead line. The technician will work alongside the lines from fully insulated platform. The technician works at the same potential (voltage) as of the line. (Equipotential condition with hot line that prevents flow of current through operator.)
- Equipment is dielectric tested at the best world laboratory.
TECHNOLOGY
“Foam Filled” Technology utilized in NAFFCO insulator booms is unique and integral to the performance of the latest state of the art booms.
NAFFCO foam filled technology: epoxide-resin reinforced by glass fiber tube filled by high density polyurethane foam (closed particles).Completely complying with ANSI & IEC 1057 and succeeded to fulfil all types of tests as per ANSI & IEC 1057 specially:
- Test of penetration for humidity of the foam filled boom.
- Mechanical test for fatigue. (All electrical tests are carried out after fatigue test.)
- IEC 1057 Type Test up to 1,250,000V

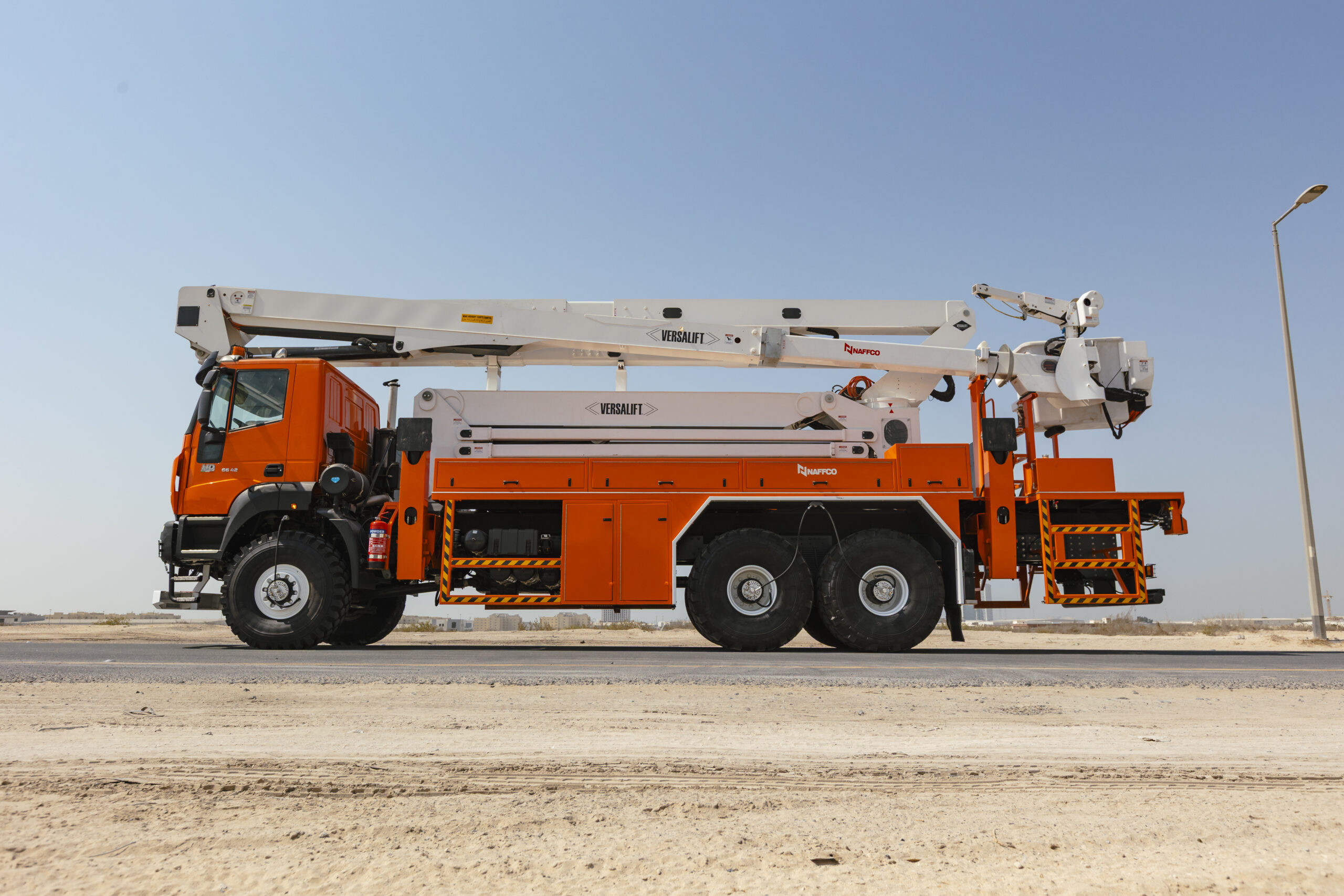

TECHNICAL SPECIFICATIONS

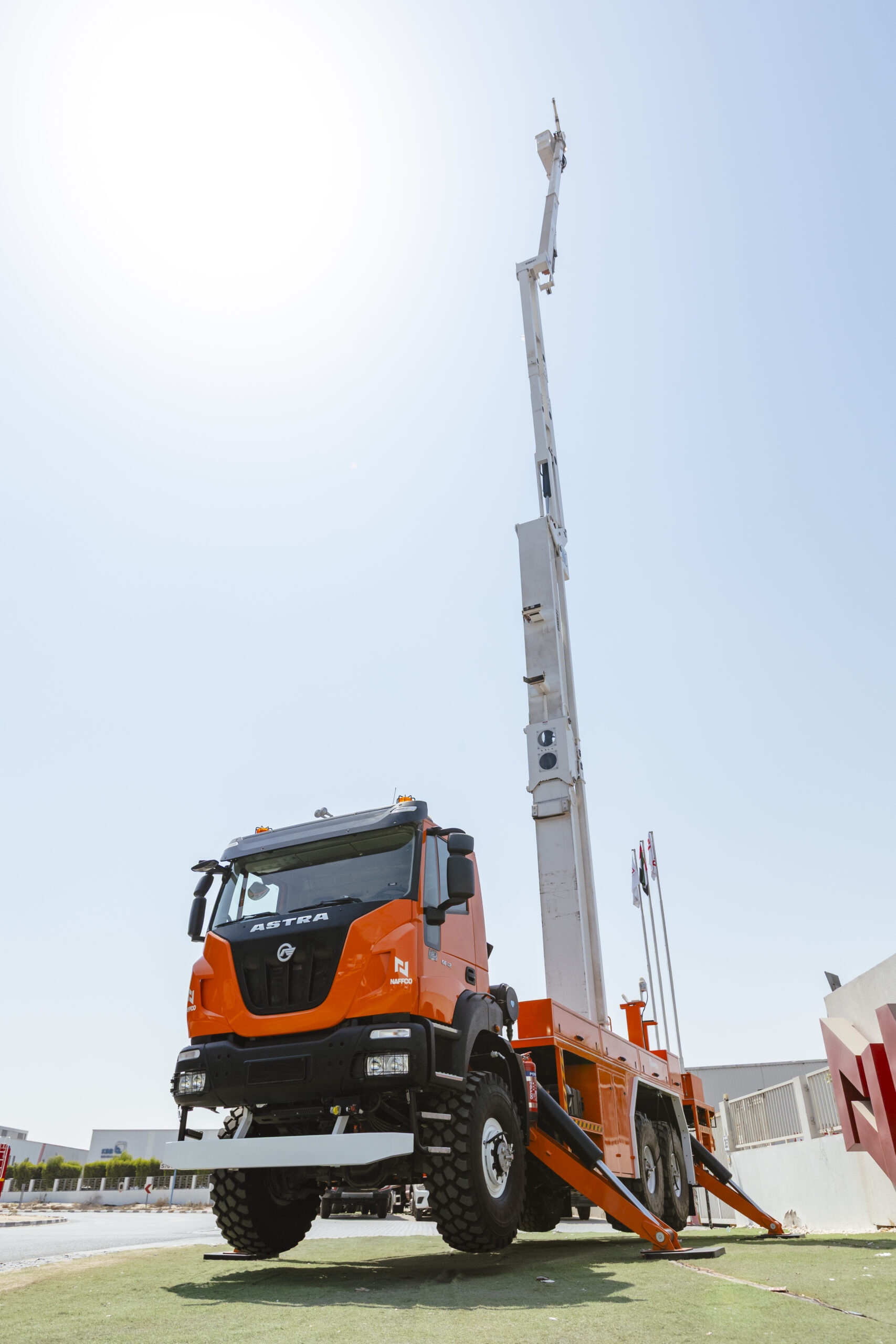

| Model | T 65I |
| Rotation | 360° Continuous |
| Maximum Live-Working Height | 66.5m |
| Maximum Height | 65.0m |
| Maximum Horizontal Outreach | 22.5m |
| Rated Bucket Capacity | 500 daN (2 men + tools) |
| Insulation Safe Working Load | 500 kg |
| Insulation Rate | 765 kV |
| Mounted on | Various chassis options |
