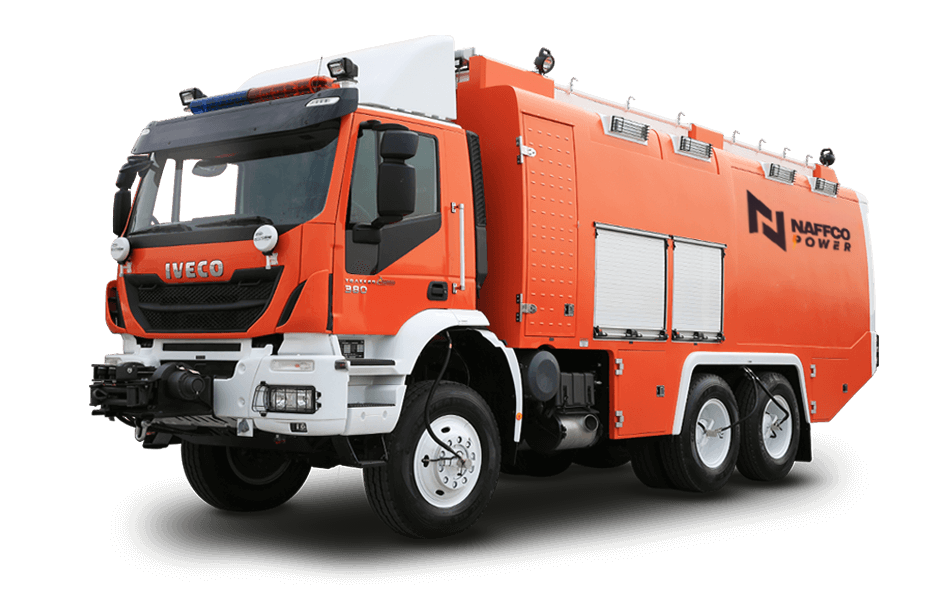

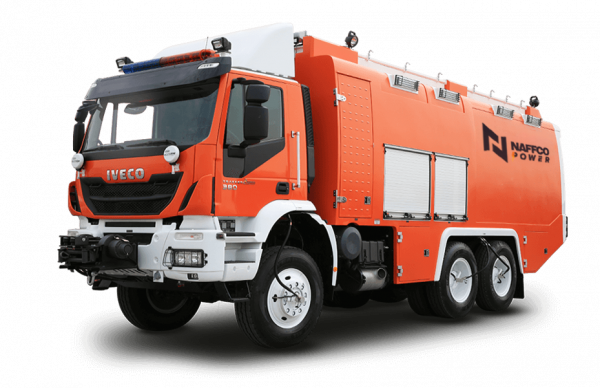

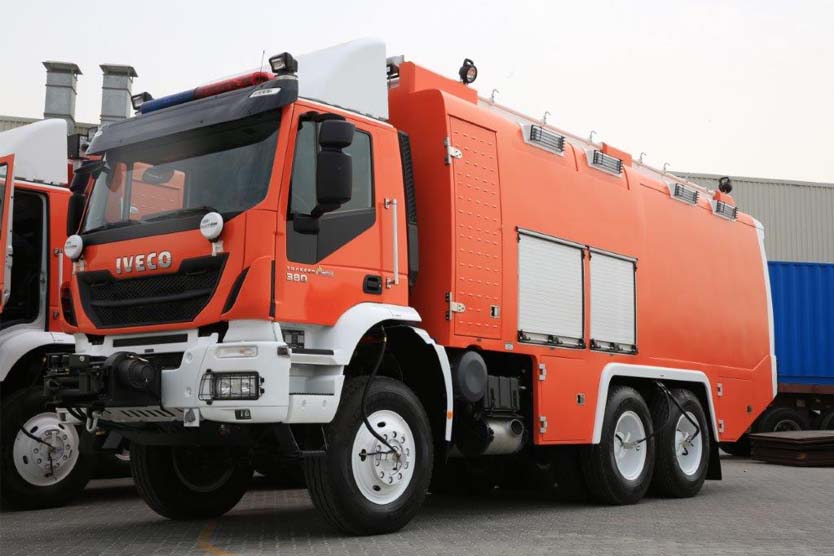

MOBILE WORKSHOP
HigHlights
- Fully Equipped Truck Specialized for Electric Issues and Repair Services
- Equipped with Super Silent Generators
- Air conditioning system in rear compartment.
- Quick access of testing, inspection & repair tools for emergency application.
- Compact Design
- All-Wheel Drive
NAFFCO Design and build Mobile Workshop Vehicles As Per Customers Choice And Requirements.
“Construction, maintenance and repair works on overhead lines for power transmission, trams, metros and railways are accomplished economically with Mobile Workshop Vehicles by NAFFCO.”
MAIN FEATURES OF OUR MOBILE WORKSHOP UNITS
- Mobile Workshop Vehicle is provided with air-conditioned inside compartment for technician to work on-site at ease in all weather conditions.
- Body structure is made of all GRP Material designed for strength and rigidity fastened on the auxiliary frame.
- Equipped with 4 cable reel compartments, 2 on the R/H side and 2 on the L/H side.
- One 6 kW gasoline powered portable generator, easy to remove with sliding mechanism.
- Front light mast behind the cab with 2 × 500 Watt light with 360° rotation controlled by wireless remote control.
- Rear light mast at the inside structure with 2 × 500 Watt light and 360° rotation extension from the roof of the truck.
- Hydraulically driven front bumper mounted winch assembly. Hoses will be covered with heavy duty conduits.
- A hydraulically operated ladder gantry is installed on roof to allow a controlled, safe operation, carry access and removal of ground ladder to shoulder height of 152 cm from ground level. The hydraulic power pack is electrically driven and has also possibility of manual operation. Able to carry ladders with a closed length up to 6 m.
- Inside compartment armed with heavy duty table and bench vice on the left hand side.
- Compartment unit is delivered with inner cabins to house the tools and other accessories.
- For all terrain works.
CHASSIS
Multiple chassis options as per the choice and requirement of the specifications.
BODY STRUCTURE
The structure is made of all GRP Material designed for strength and rigidity fastened on an auxiliary frame
CABLE REEL COMPARTMENTS
Four (4) cable reel compartments, 2 on the R/H side and 2 on the L/H side of the vehicle closed by light alloy roller shutters
GENERATOR COMPARTMENT
One (1) 6000 watt, portable generator, with gasoline powered, easy to remove with sliding mechanism
