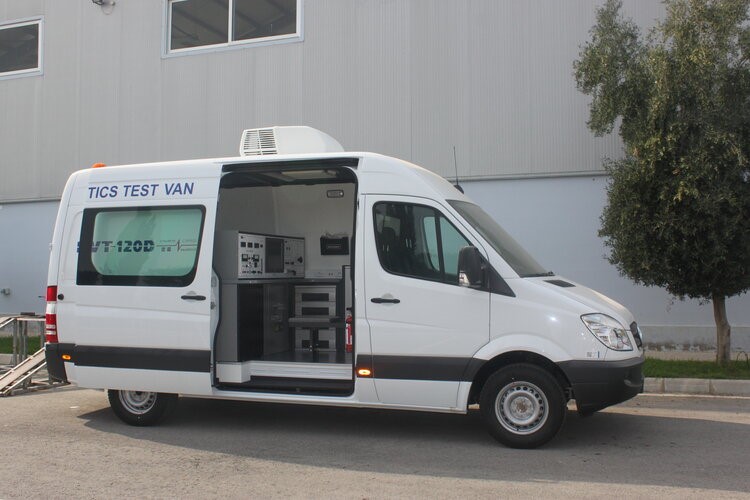

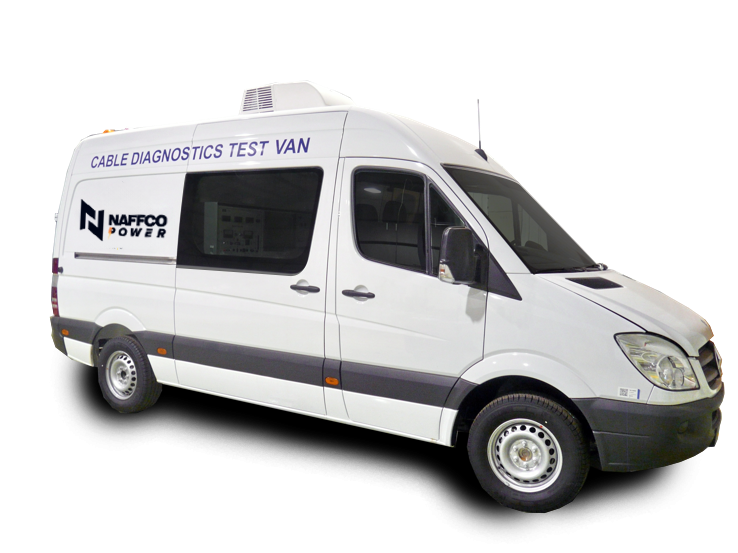

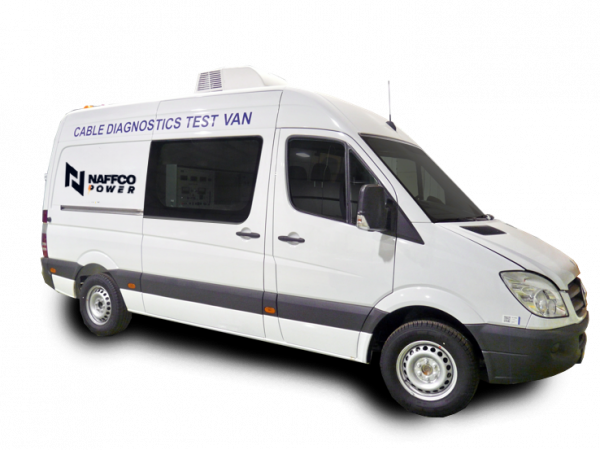

CABLE TEST VAN HVT – 120
HigHlights
- Roof mounted air conditioner
- Internal lighting 220 VAC & 12V DC
- Insulated walls and roof for thermal and noise

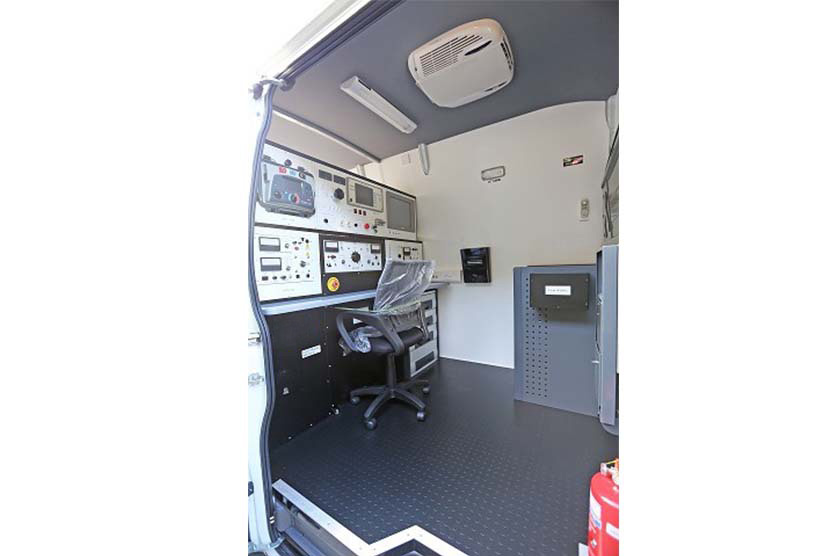

- Special antistatic floor in operator area

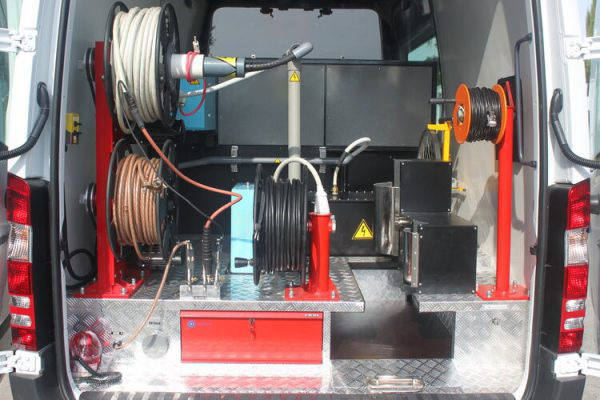

- Special aluminum tread plate suitable for rough loading in high voltage area
- Partition wall, Operating desk & Swivel chair
- Drawers for storage of accessories
The HVT120 is a modern and powerful cable test van system for reliable fault location and testing up to 69 KV class cable.Its latest generation diagnostic system offers partial discharge and tan delta testing of 115 KV class cable.
The basic configuration of HVT120 includes the following functions:
- Very Low Frequency (VLF) AC 0.1 Hz High Voltage
- Withstand Tests
- VLF Partial Discharge Diagnosis Measurements
- VLF Dissipation Factor (Tan Delta) and Power Factor
- Measurements
- DC High Voltage Withstand Tests
- Burning Down of Defective Insulation
- Insulation Resistance Testing
- Cable Fault Pre-Location
- Precise Cable Fault Acoustic Pinpointing
- Cable Sheath Testing
- Audio Frequency Cable Route Tracing and Depth
- Evaluation
- Cable Phase Identification
